Elatec badgelezer programeren

Elatec badgelezer programeren

1. Connecteer usb op pc

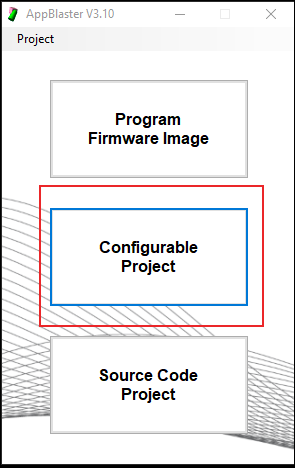

2. Open app blaster

3. selecter configurable project

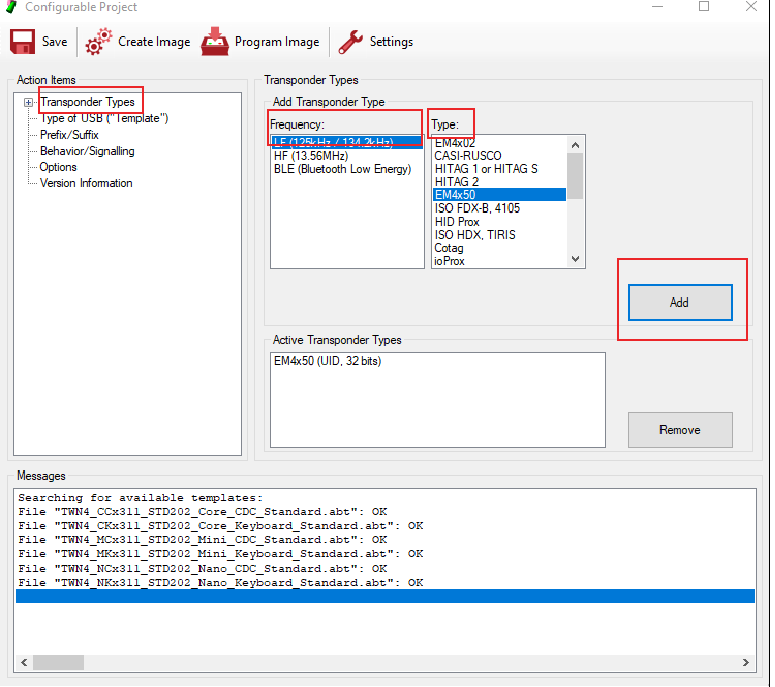

4. Transponder type steds LF (125KHZ)

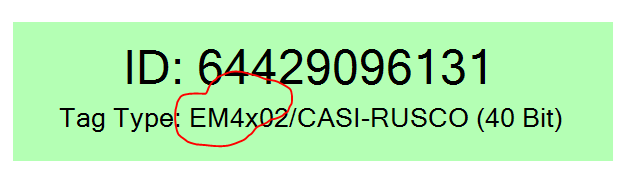

5. Type afhankelijk vb hieronder EM4x02

6. add

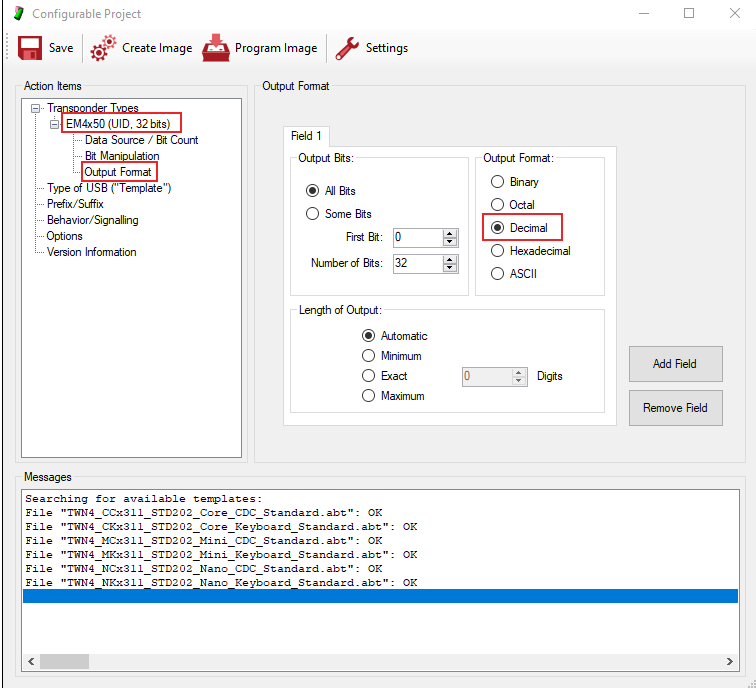

7. Output Decimal zetten

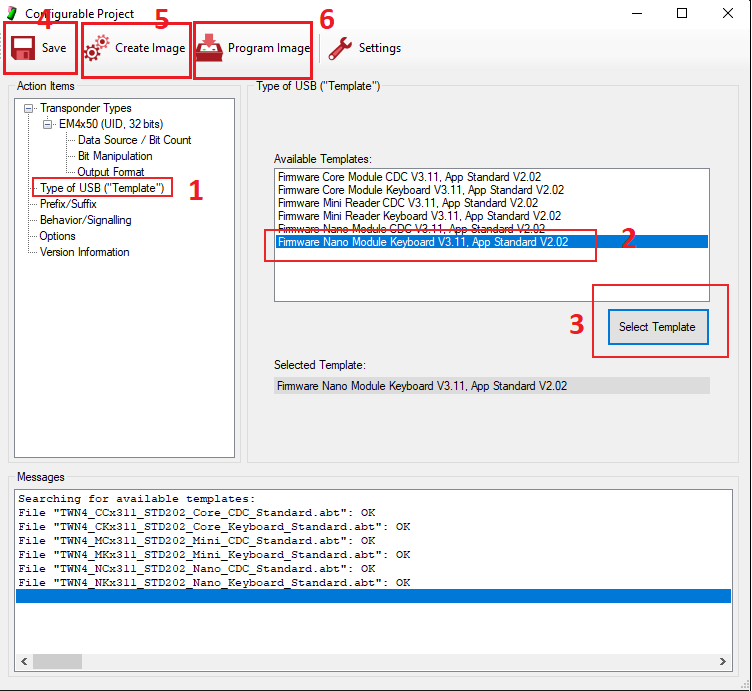

8. Select template steeds Nano module keyboard V3.11 App Standard V2.02

9. Sav

10. Create Image

11. Program image
